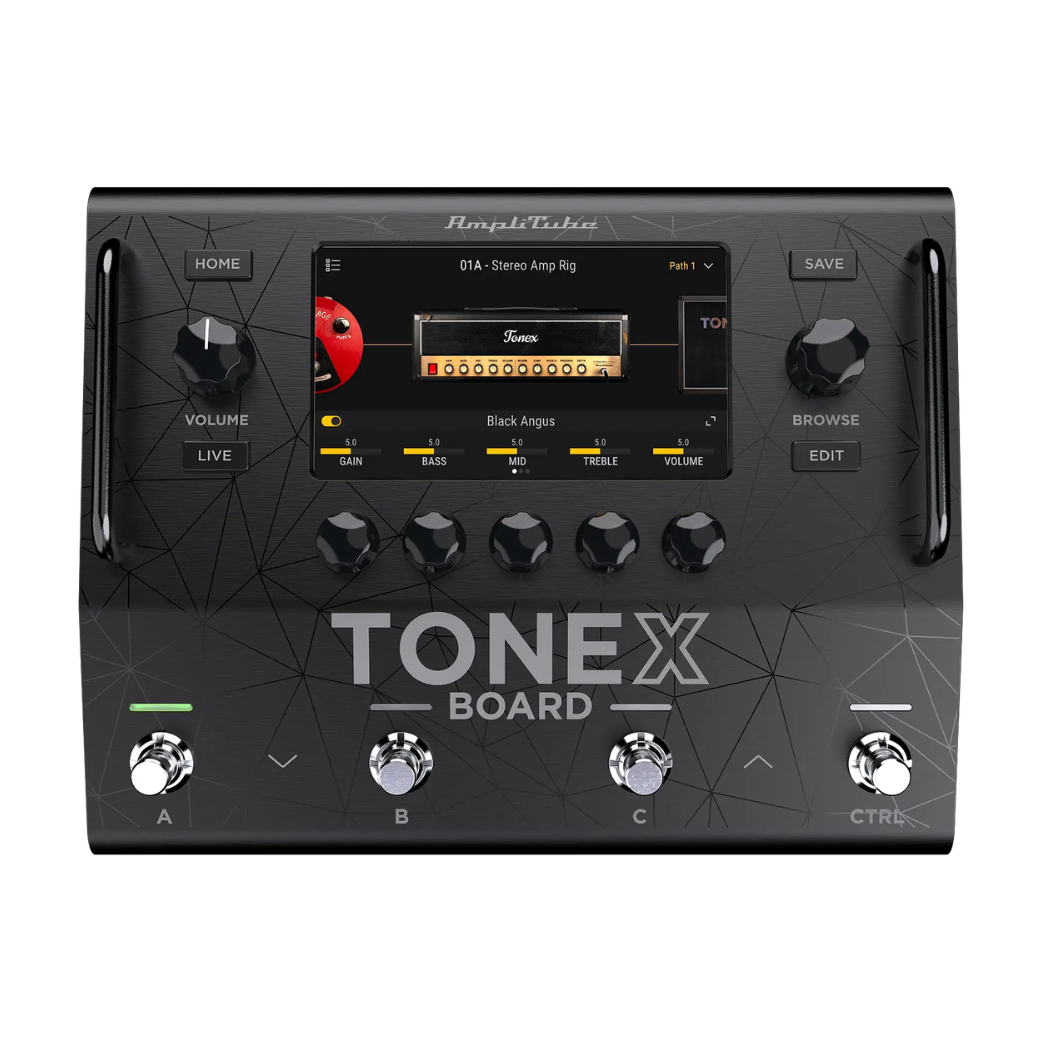

IK TONEX BOARD All-in-One Guitar Bass Processor

The IK Multimedia TONEX Board is an all-in-one guitar and bass processor built for players who want realistic amp, cabinet and stompbox tones with serious routing, control and live performance flexibility.

Fully compatible with TONEX AI-driven Tone Models, TONEX Board gives you access to hyper-realistic models of real amps, cabinets and stompboxes, powered by IK Multimedia’s AI technology. It is designed to handle everything from studio tone building and direct recording to full live rigs, amp-less setups and advanced pedalboard integration.

Key Features

• IK Multimedia TONEX Board guitar and bass processor
• Fully compatible with TONEX AI-driven Tone Models
• Hyper-realistic models of real amps, cabinets and stompboxes
• Up to 4 simultaneous Tone Models per preset
• 1 amp and 1 stomp per path
• 70+ built-in effects derived from AmpliTube and custom processors
• Up to 12 effect slots
• Splitters and mixers for complex effect chains
• Preset Mode, Scene Mode and Stomp Mode
• Stereo FX loop can be placed anywhere in the chain
• FX loop can split into two independent mono loops
• Store up to 1400 presets
• 12 setlists
• 5-inch high-resolution colour touchscreen
• 5 encoders for hands-on control
• Access to 60,000+ Tone Models on ToneNET
• Stereo input
• Dual independent stereo outputs via XLR and TRS
• USB-C connectivity
• Integrated 4-in/2-out USB audio interface
• Direct monitoring
• TONEX Librarian support
• Custom IR Loader module
• IK VIR cabinet technology
• Full MIDI implementation
• Two expression pedal inputs
• 24-bit, 192 kHz converters
• 5 Hz–24 kHz frequency response
• 123 dB dynamic range
• Dimensions: 235 x 184 x 72 mm
• Weight: 1.6 kg
• UPC: 8025813011267

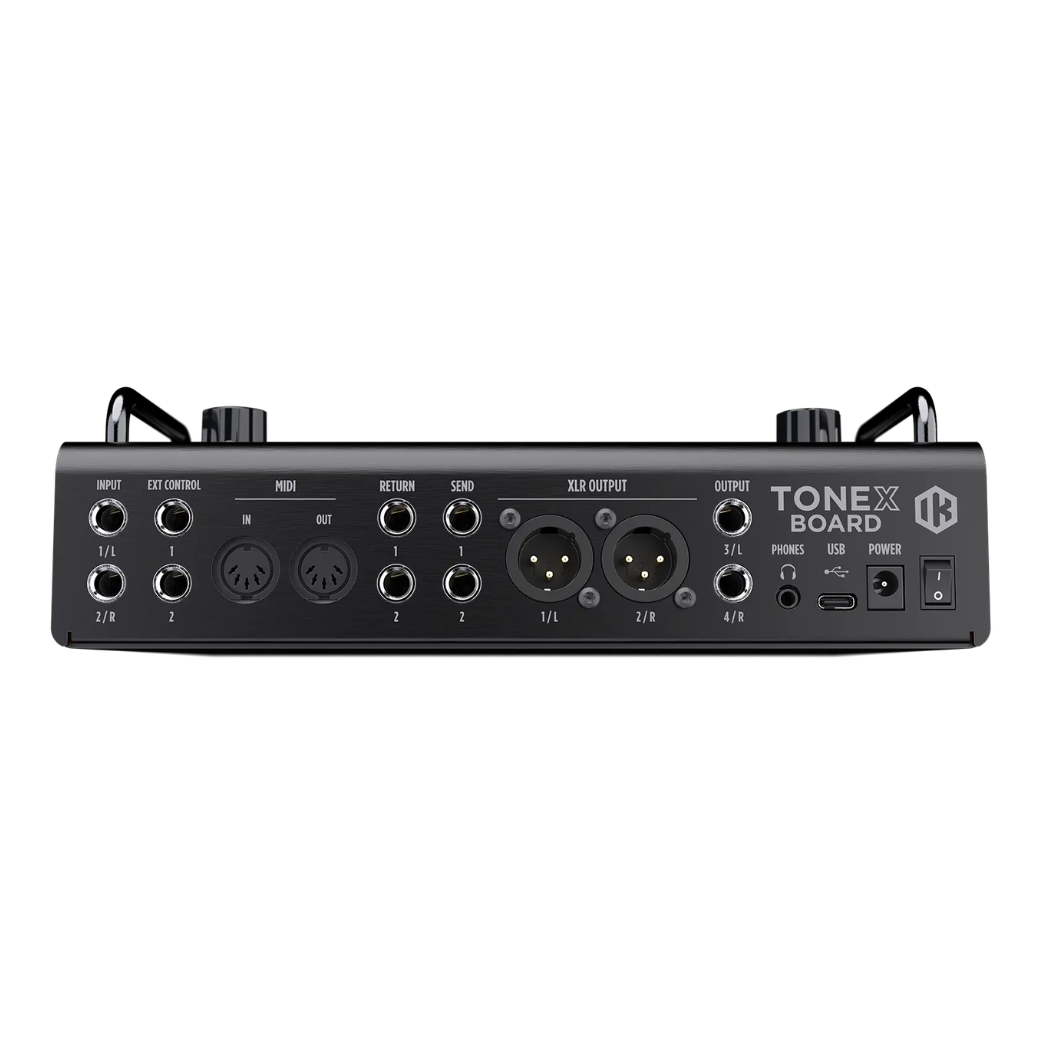

Connections

• Mono/stereo input
• 2 x external control connections
• MIDI In/Out
• 1 x stereo send/return or 2 x mono send/return
• 2 x stereo outputs: XLR 1 & 2, TRS 3 & 4
• Headphone output
• USB-C
• Power connection
