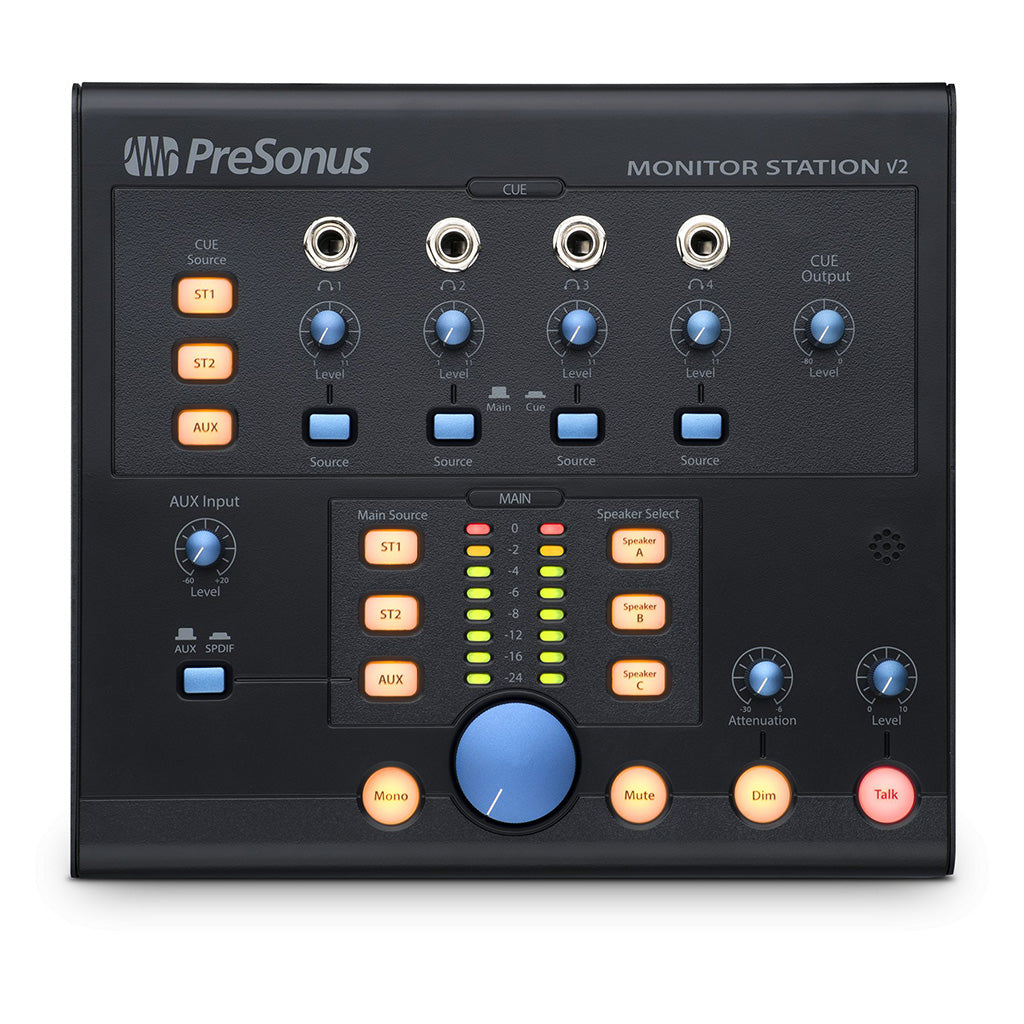

Presonus Monitor Station V2
- $499.00
- $499.00
- Unit price
- per
Subtotal:
$499.00
DESCRIPTION
xTake control of your monitor system.
With its ergonomic, intuitive layout, extensive features and I/O, and PreSonus’ famed sound quality, Monitor Station V2 provides a versatile, convenient, and affordable solution for managing your studio monitoring system from your desktop. So sashay down to Music Corner and take control of your monitoring system the way the professionals do!
Equip your studio with pro monitoring features for a song.
Manage multiple audio sources and sets of monitor speakers, track using illegally loud headphone amplifiers, and talk back to your drummer—all from your desktop.
Consider your sources.
Switch quickly and easily between up to four audio sources with a selection of input types.
Manage Your Destinations.
Audition your music with your choice of three stereo pairs of speaker outputs, each with separate level control. Four screaming-loud headphone outs and a talkback mic ensure your musicians hear every note—and your instructions—clearly.
Customise your system for the way you work.
There’s more to managing a monitoring system than I/O, level controls, and talkback. The Monitor Station V2 offers powerful options that allow you to configure it for the way you like to work.
TECHNICAL SPECIFICATIONS
Audio Inputs |
|
|---|---|
Internal Talkback Microphone |
|
| Gain Range | +15 to +55 dB |
| Type | Electret condenser |
| Sensitivity | -42 dB |
Stereo 1 and Stereo 2 Inputs |
|
| Type | ¼” TRS Active Balanced |
| Input Impedance (Balanced) | 10 kΩ |
| S/N Ratio (1 kHz @ +10 dBu, Unity Gain) | >105 dB |
| THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) | <0.0075% |
| Frequency Response (±0.5 dB) | 10 Hz to 65 kHz |
| Noise Floor (20 Hz to 20 kHz, 150Ω input termination) | -96 dBu |
| Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N) | +22 dBu |
Auxiliary Inputs |
|
| Type | RCA Active Unbalanced |
| Input Impedance | 47.5 kΩ |
| S/N Ratio (1 kHz @ 0 dBu, Unity Gain) | >115 dB |
| THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) | <0.01% |
| Frequency Response (±0.5 dB) | 10 Hz to 50 kHz |
| Gain Range | 80 dB to +10 dB |
S/PDIF |
|
| Types | RCA 75Ω coax |
| Dynamic Range | 113 dB |
| THD+N | 0.0025% (1 kHz @ -1 dBFS) |
| Maximum output at 0 dBFS | +18 dBu |
| Sample Rates | 44.1, 48, 88.2, 96 kHz |
Input Meters (ST1, ST2, and Aux only) |
|
| Type | Dual 8-segment LED w/peak hold |
| Sensitivity Range | -24 dB to 0 dB |
Audio Outputs |
|
|---|---|
| Type | ¼” TRS Active Balanced |
| Output Impedance (Balanced) | 51Ω |
| THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain) | <0.01% |
| Frequency Response (±0.5 dB) | 10 Hz to 50 kHz |
Speaker A, B, and C |
|
| Trim Range | -80 dB to 0 dB |
| Main Level Range | -80 dB to 0 dB |
| Dim Attenuation Range | -30 dB to -6dB |
Cue |
|
| Cue Level Range | -80 dB to 0 dB |
| Dim Attenuation (Talkback activated) | -20 dB |
Headphones |
|
| Type | ¼” TRS Active Stereo |
| Maximum Output (60Ω load) | 150 mW / channel |
| Frequency Response (±1.0 dB) | 10 Hz to 50 kHz |
Power |
|
|---|---|
| Power Supply Type | External DC Transformer/Internal Line |
| Input Connector Type | Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter |
| Monitor Station Input Voltage Range | 18 VDC |
| Power Requirements (Continuous) | 10W |
Physical |
|
|---|---|
Dimensions |
|
| Height | 2.5” (63.5 mm) |
| Depth | 8.5” (216 mm) |
| Width | 9” (228.6 mm) |
| Weight | 6 lbs. (4.54 kg) |
