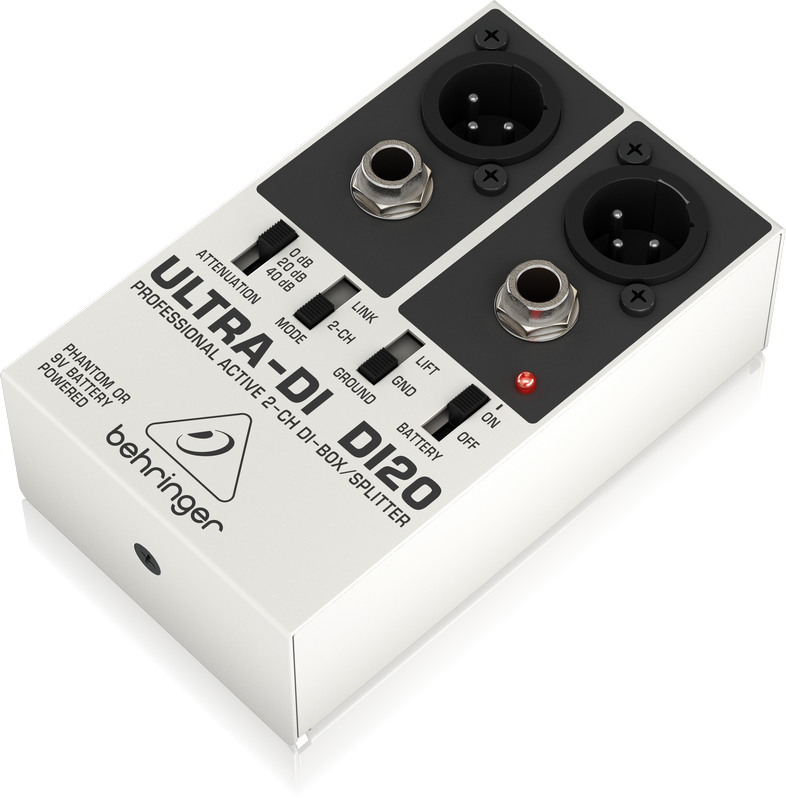

ULTRA-DI DI20

The ULTRA-DI DI20 is a one-of-a-kind DI (Direct Injection) box that can convert up to two separate, unbalanced ¼ " TRS lines into two balanced XLR outputs – or function as a signal splitter. Electric guitarists, keyboardists and bassists will love the flexibility the incredible DI20 provides both in the studio and on the stage.

• Professional and multi-purpose direct injection box for stage and studio applications

• Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers

• Converts 2 independent unbalanced 1/4'' TRS line inputs into 2 balanced XLR outputs

• Additional Split mode (channel 1 assigns signal to both XLR outputs)

• Ultra-flat frequency response due to servo-balanced operation

• Internal battery automatically shuts off when phantom power is applied

• Allows direct connection to speaker outputs with up to 3,000 Watts

• Ground Lift switch eliminates typical ground loop problems

• Input 2 usable as channel 1 Link output (additional to XLR output)

• TRS and gold-plated XLR connectors

• Ultra-rugged, road-suitable metal case

• 3-Year Warranty Program*

• Designed and engineered in Germany

Mono, Stereo or Double the Amps

By flipping a switch, you can use the DI20 as a launching pad for two separate mono signals, a stereo signal – or a split-signal feeding two separate amps. The DI20 also features a superb ground-lift switch, and the 3-position input attenuator can accommodate input levels of up to +48 dBu. This handy built-in attenuator also allows you to connect directly to your amplifier’s speaker outputs, even amps rated as high as 3,000 Watts. You can power the DI20 with either a 9 V battery or your mixer’s phantom power supply (+18 to +48 V DC). The whole package is wrapped in an ultra compact, road-suitable and rugged metal housing.

Be Direct

If you’re a working musician who demands uncompromising functionality and durability, the ULTRADI DI20 will astound you – and so will its ultra-affordable price tag! See what the DI20 can do for your sound in store – or get yours online today.
